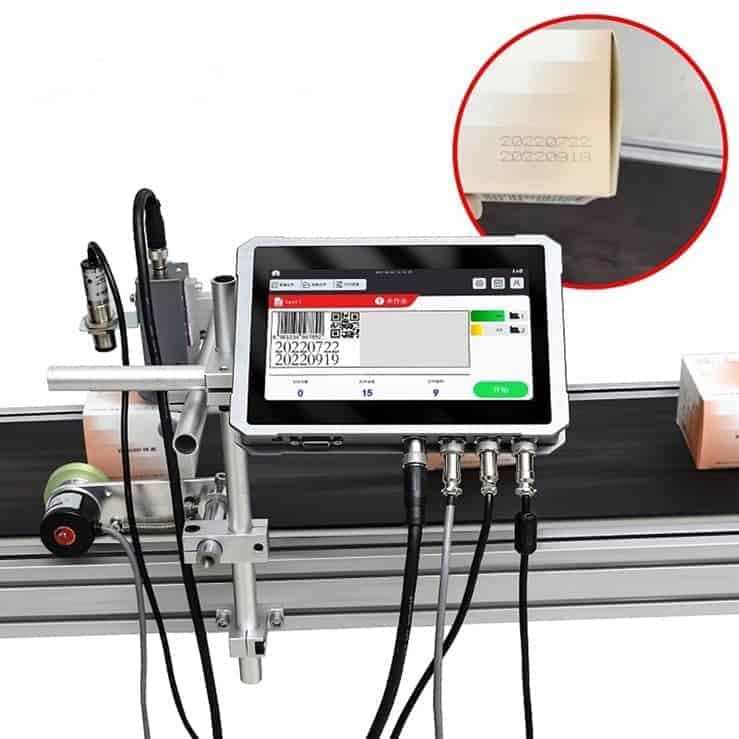

TIJ Industrial Printer MxPlus 2.0
Features:
- 7″ touch screen
- Linux control system
- USB, RS232 Interface
- Possibility to connect a sensor, encoder, beacon
- Printing on absorbent and non-absorbent materials
- Option to print with 1-2 print heads
Variable data
- Printing from the database
- Variable QR code, datamatrix, barcode
- Printing serial numbers
Wide printing options
- TrueType font support
- Option to import fonts
- Print height 1-25.4 mm
Printer information
Benefits
Print heads work independently of each other
New design provides greater resistance to electromagnetic interference
With 8 GB of RAM, MXPlus allows you to store large amounts of data locally and conveniently edit files directly on the device, without the need to connect to a computer
Flexible control, user interface with three levels of access
Application
Video
Technical data
| Printing technology | 600 dpi high resolution TIJ printing |
| Screenshot of | 7″ HD touchscreen with 800*480 resolution |
| Press heads | 1-2 printheads with 12.5 mm print height/head with the possibility of print fusion |
| Maximum printing speed | Maximum speed 240m/min |
| Codenames | EAN 8, EAN13, GS1, Code 25, Code39, Code 128, QR, Datamatrix |
| Link | USB, RS232 |
| Inks level monitoring | Yes, a watch for each press head separately |
| Installation | Printing from above, printing from the side |
| Environment | -10-55 °C, 10-95% humidity |
| Power | 100-240 V |
