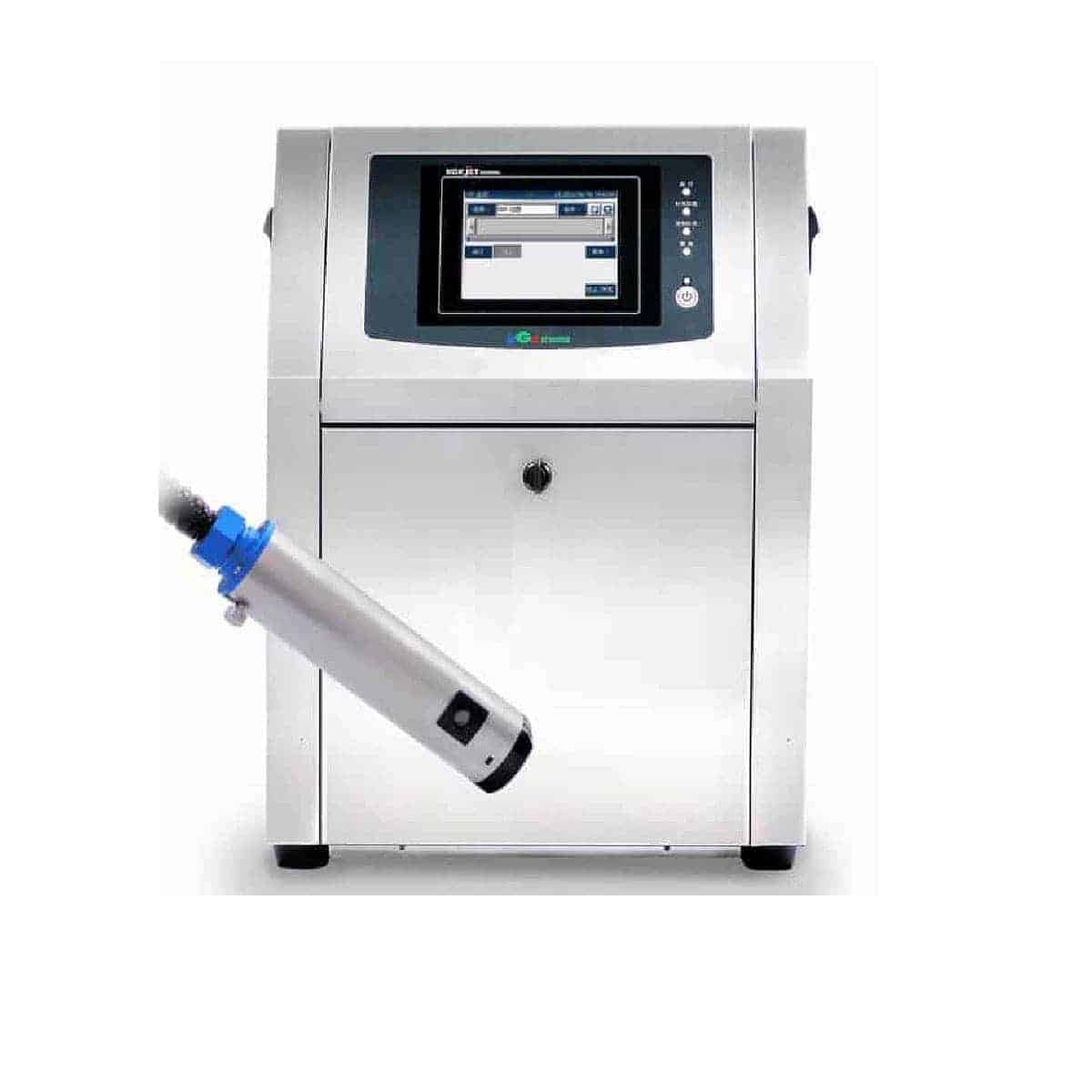

KGK 3000L D40 inkjet printer for printing the smallest characters
Inkjet printer for micro marking
- It is designed to print up to 4 lines with black or non-pigment inks.
- Automatic ink circuit closure ensures maintenance-free operation.
- Very little marking even on the smallest products.
- Nozzle size 40 mic.
Optional accessories for inkjet printers (prices without VAT)
Printer information
Benefits
Automatic nozzle closing technology
Automatic stop schedule
Communication protocol enabling connection to the parent system
Stable coding even in wet and dusty environments
High-speed marking
Multicontrol
Application
Video
Technical data
| KGK JET CCS 3000L | ||
| Compatible inks | Non-pigmented and pigmented | |
| Dust and water proof | IP54 | |
| Screen size | 5.7″ colour touch | |
| Nozzles option | 40μm / 50μm / 60μm | |
| Print height | 0.8 – 12 mm (40 – μm nozzle), 1 – 18 mm (50 – μm nozzle), 2 – 20 mm (60 – μm nozzle) | |
| Maximum printing speed | Max. 3200 characters/sec (font 5×5) | |
| Characters types | Alphanumeric characters, barcodes and 2D codes, special characters, possibility to create your own fonts and characters | |
| Vertical resolution | 24 points | |
| Number of characters in the message | Max. 4096 characters | |
| Number of messages to register | Max. 999 messages | |
| Date and time printing function | Year/month/day, day of the week, time (12/24h format), day of the year, number of week of the year, possibility to divide the month into 3 periods (setting variable time and custom code), AM/PM, shift code (assigning custom characters), function of assigning custom characters to year, month, day, hour, minute, second, day of the week | |
| Funkce tisku číselné řady | Up to 10 digits, any initial value setting, up/down counting, digit transposition, function to assign custom characters to year, month, day, hour, minute, second, day of the week | |
| Distance printing function | Up to 10 characters (possibility to insert characters into the counter) | |
| Barcode printing function | EAN8, EAN13, ITF, Code39, Code128, NW-7, JAN | |
| 2D codes | QR Code, data matrix, data matrix rectangular | |
| Connection with external devices | I/O, beacon, RS-232C, LAN, encoder, UPS, USB memory, Wifi module, GSM module | |
| Data entry | RS-232C, Ethernet module, GSM module | |
| Printhead cable lenght | Standard 3.5m (optional 5m) | |
| Multi-control (master slave) | Up to 16 printers (slaves) can be controlled with one master printer. Controllable functions start/stop printing, printer shutdown, system clock setting, message selection, print message editing, initial value setting of number lines | |
| Area required for installation (width x depth x height) | Tiskárna: 400 mm x 280 mm x 532 mm / Tisková hlava: ø 49,2 mm x 197 mm | |
| Requirements for the environment | 0-40ºC, humidity 10 to 85% (non-condensing) | |
| Electrical connection | AC 90-264 V (47-63 Hz), 80 W | |
| Weight | 25 kg | |
