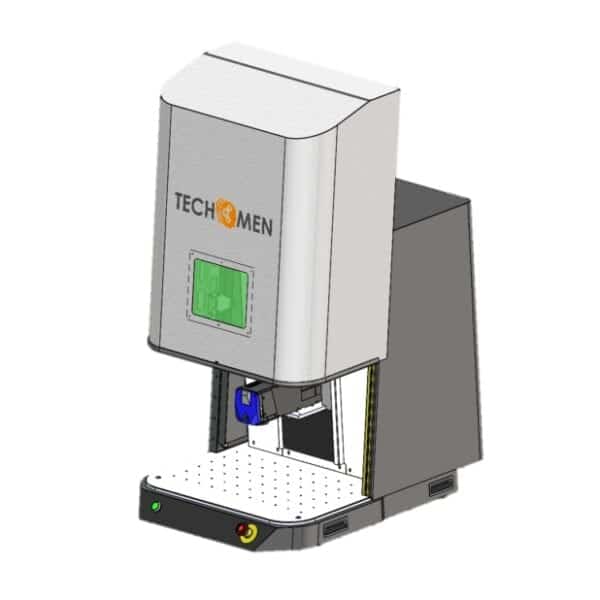

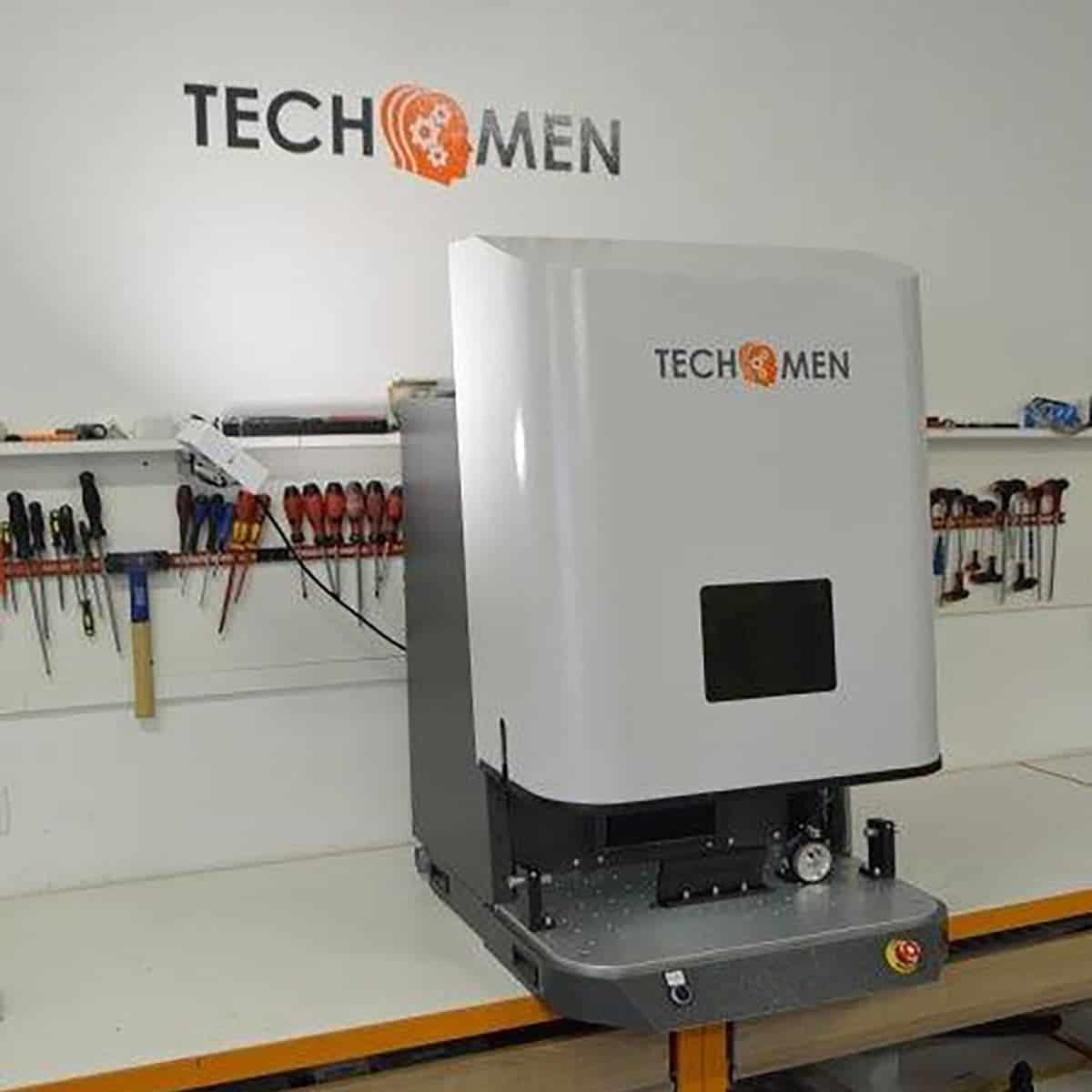

Laser station

In designing this station we have used our many years of experience in the field of laser marking. The station is ready to implement all Datalogic lasers. Thanks to the Lighter software, precise marking of texts, barcodes, 2D Datamatrix codes, QR codes and other graphic characters is very easy. It is designed for maximum safety, ergonomics and productivity.

  • for all Datalogic lasers and most lasers from other manufacturers
Inquire laser station

Production efficiency, operator comfort

The laser station is the ideal solution for laser placement in production. It ensures maximum safety, easy handling and thus also higher production productivity.

Advantages of the laser workstation

Class 1 laser safety enclosure

Transparent window with protective glass (supplied according to the wavelength of the laser used)

Programmable Z-axis automatically sets the correct focal length according to the selected program

Working space 500 x 350 mm

Door opening height 350 mm

With the Arex 400 laser and S160 lens, it allows insertion of product heights up to 310 mm

Base plate with threads for easy fixing of the fixture

Electrically opening doors provide easy access for handling parts from three sides and maximize the use of the work area

Programmable Z-axis setting for automatic focus change when marking changes

Automatic mode for high production volume applications

This mode allows for automatic door closing, marking and opening sequences to maximize operator productivity.

Benefits

Station Variability

In addition to the basic workstation, we also have a version for continuous marking of cables, hoses, pipes.

The station can be retrofitted with a programmable rotary axis for marking cylindrical parts.

Lorem ipsum

Lorem ipsum

Lorem ipsum

Lorem ipsum

Application

Video

Technical data

D I M E N S I O N S
Height with the doors closed 839 mm
Height with open door 1210 mm
Width 657 mm
Length with Arex400 830 mm
Length with V-LASE 985 mm
Length with V-lase Green/UV 1130 mm
Weight without laser 95 kg
W O R K S P A C E
Work area 500 x 350 mm
Door opening height 350 mm
Threads for easy fixation of the product 66 threads, raster 6 × 11
Thread pitch 50 x 50 mm
C O N N E C T I O N R E Q U I R E M E N T S
Power supply 230 V 50 Hz
